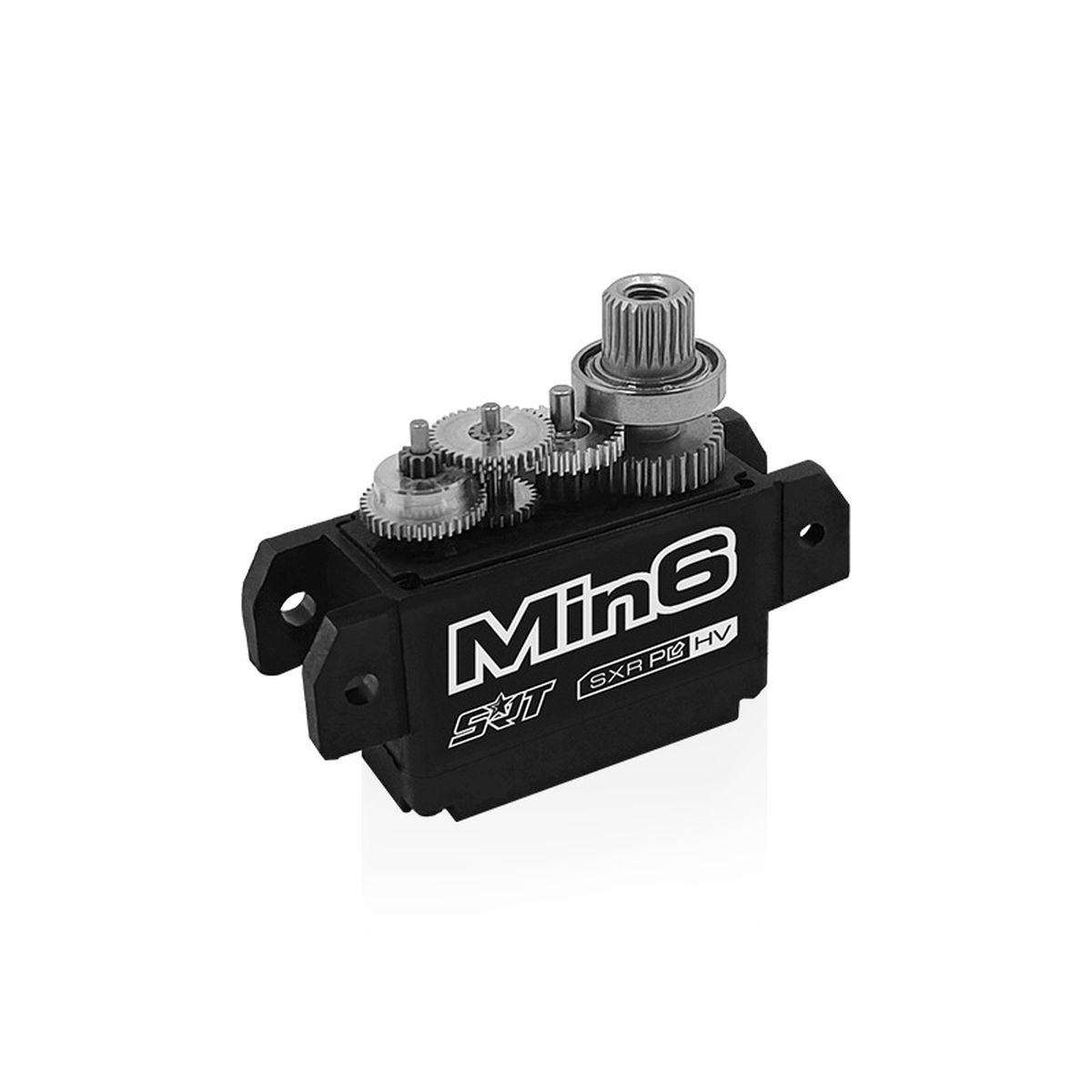

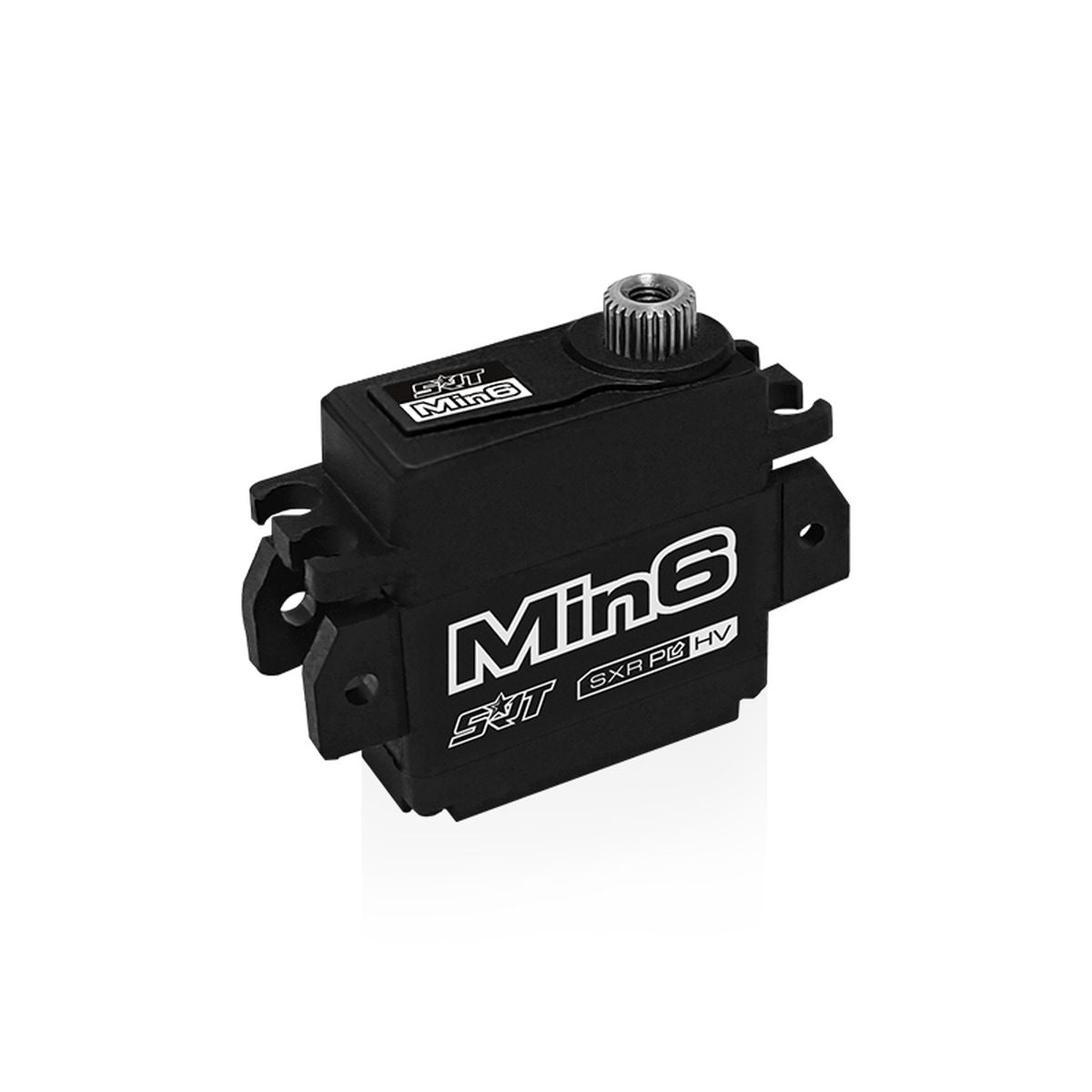

SRT RC MIN6 Mini HV Coreless Digital Servo, SRTMIN6

MIN6 Mini HV Coreless Digital Servo, .062sec / 125.0oz @ 8.4V

The latest generation of SRT servos provides you with the performance you need for any application. This is a mini sized servo for High-Voltage applications up to 8.4V and features an all metal case construction for the ultimate performance.

Features:
Special 1/12 pancar servo
Servo supports various ultra-high-speed modes like SSR, SFR, SXR, SR.
Incredible efficiency and low power consumption
2 usec Dead Band
1-Year Limited Warranty

Specifications:
Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: 7075 Aluminum
Control System: Pulse Width Control
Working Frequency: 1520us / 333hz
Operating Voltage: dc4.8-8.4v
Operating Temperature Range: -10 to + 60 degree
Operating Speed (4.8v): 0.100 sec/60 degrees at no load
Operating Speed (6.0v): 0.080 sec/60 degrees at no load
Operating Speed (7.4v): 0.070 sec/60 degrees at no load
Operating Speed (8.4v): 0.062 sec/60 degrees at no load
Stall Torque (4.8v): 5.0kg.cm (69.4 oz/in)
Stall Torque (6.0v): 6.8kg.cm (94.4 oz/in)
Stall Torque (7.4v): 8.0kg.cm (111.1 oz/in)
Stall Torque (8.4v): 9.0kg.cm (125.0 oz/in)
Potentiometer Drive: Direct Drive

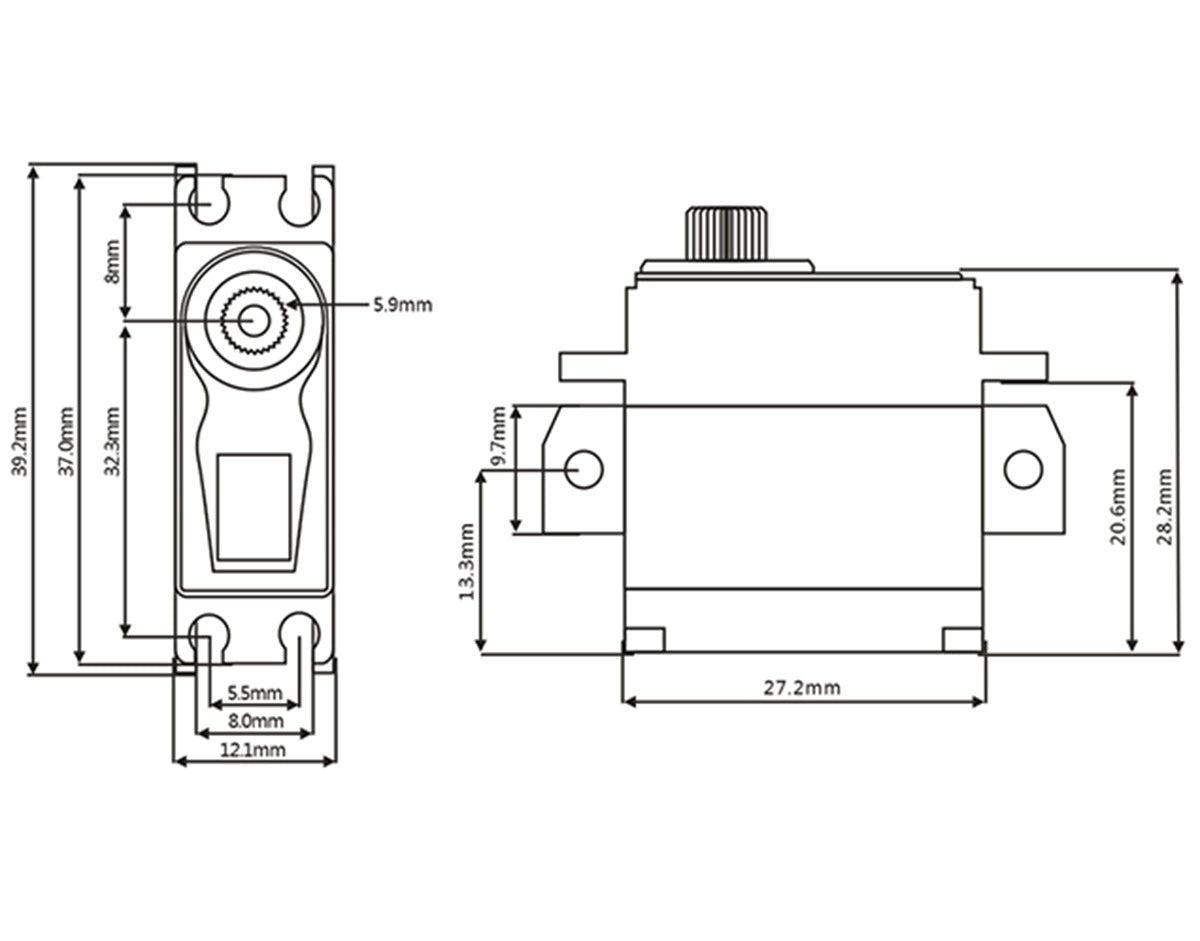

Dimensions: 27.2x12.1x28.2 mm /1.07x0.48x1.11 in
Weight: 18.0g (0.63 oz)
Connector Wire Length: jr 170 mm
