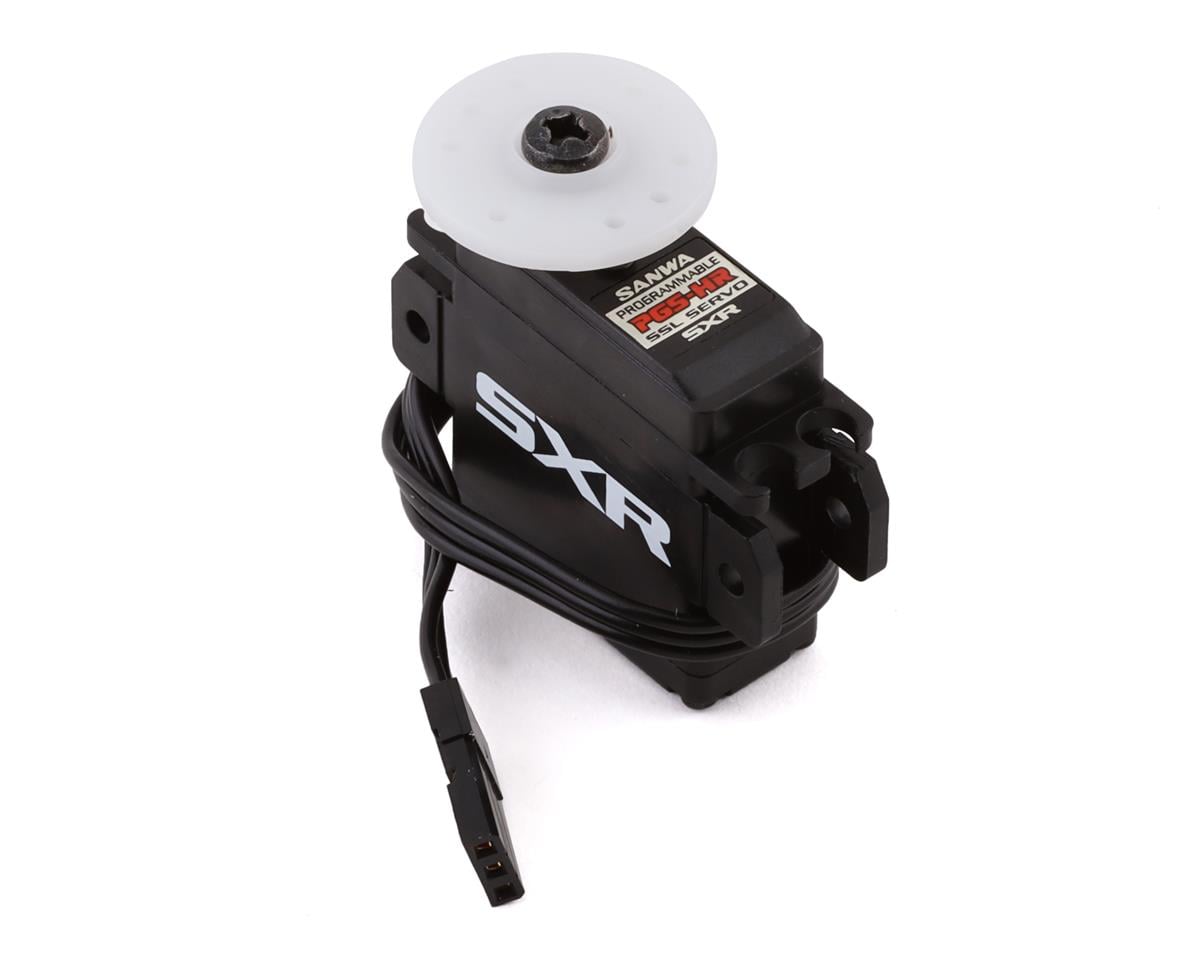

Sanwa/Airtronics PGS-HR Programmable SSL SXR Mini Servo, SNW107A54572A

Sanwa/Airtronics PGS-HR Programmable SSL SXR Mini Servo, SNW107A54572A

This is a Sanwa/Airtronics PGS-HR Programmable Mini Servo.

Features:
    FH5U: SXR(SANWA XTREME RESPONSE) MODE-COMPATIBLE
    SSL-COMPATIBLE PROGRAMMABLE SERVO
    # Compatible with CODE 10 (M12S, EXZES ZZ, MT-44)
    Not Compatible with CODE 5 (M12, EXZES Z, MT-4S, MT-4, MT-S)
    PGS SETTING GEAR-COMPATIBLE
    Specialized for 1/12 models
    LiPo (1 & 2cell) Battery Support
    Digital Servo
    Coreless Motor
    Full metal gear
    Programmable Servo to be compatible with SSL & Telemetry at Launch
    Setting Adjustment by wireless from Radio
    Setting Adjustment to connect Servo with Setting Gear
    Regarding Temperature, Current, Voltage and Volume Position on Servo inside, Telemetry-transmission can be passed to Radio.
    #Inital Setting on Setting Gear is necessary

Programming Features:
    SSL-CH (SSL Channel Setting)
    STRETC (Stretcher Adjustment)
    BOOST (BOOST Adjustment)
    D-Band (Dead Band Adjustment)
    MV-MID (Middle Torque Adjustment)
    MV-END (Later Torque Adjustment)
    BREAK (Break Adjustment)
    MV-HOLD (Power Adjustment at whole area)
    MV-FRQ (Feeling Adjustment at whole area)
    MAX-PW (MAX Duty Adjustment)

Specifications:
    Speed:
        0.10 sec / 60° (6.0 V)
        0.16 sec / 60° (3.7 V)
    Dimensions: 27.0 x 21.1 x 30.5 mm
    Torque:
        5.8 kg/cm (6.0 V)
        3.8 kg/cm (3.7 V)
    Weight: 24g
