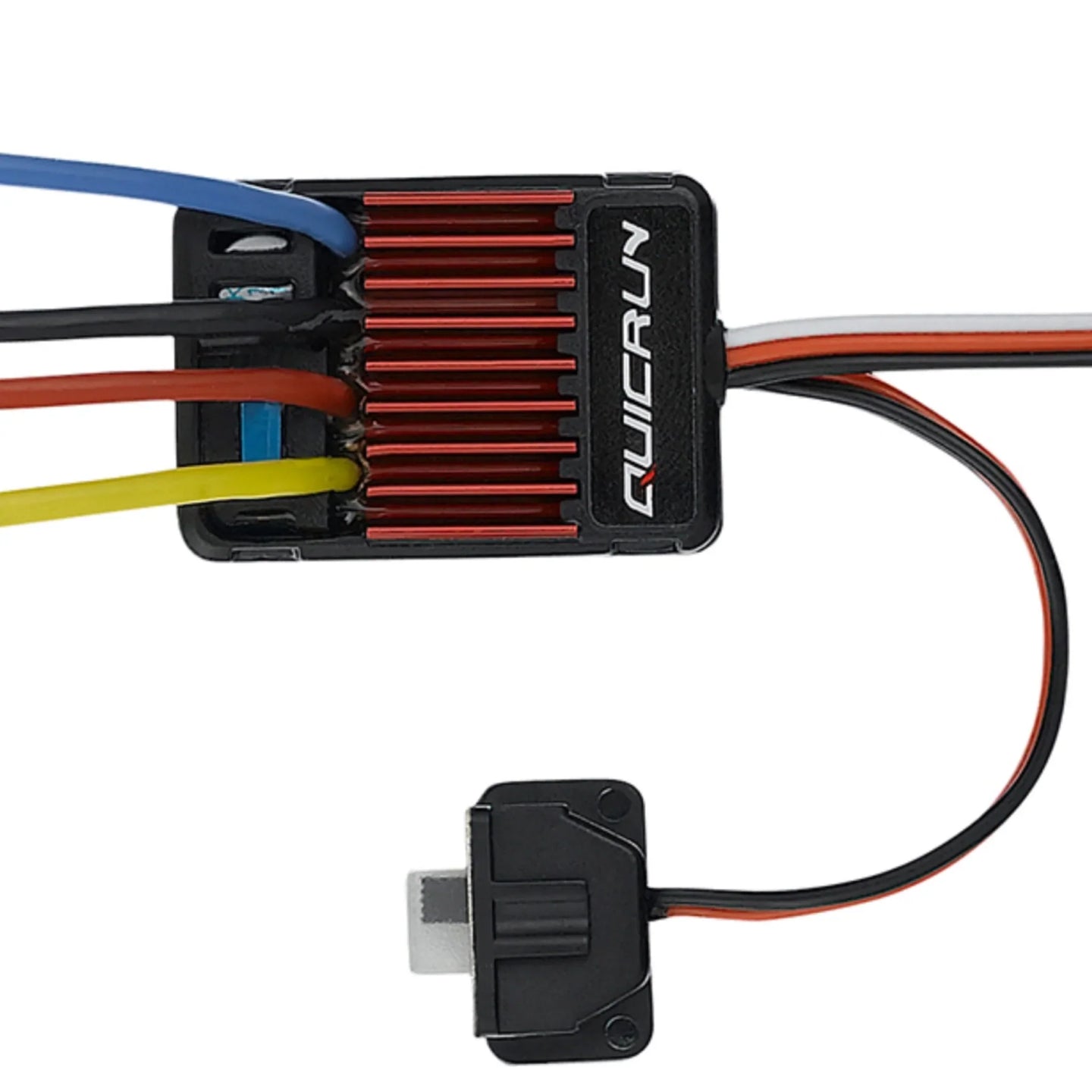

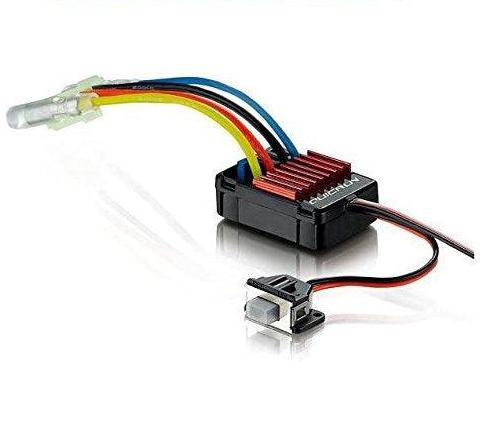

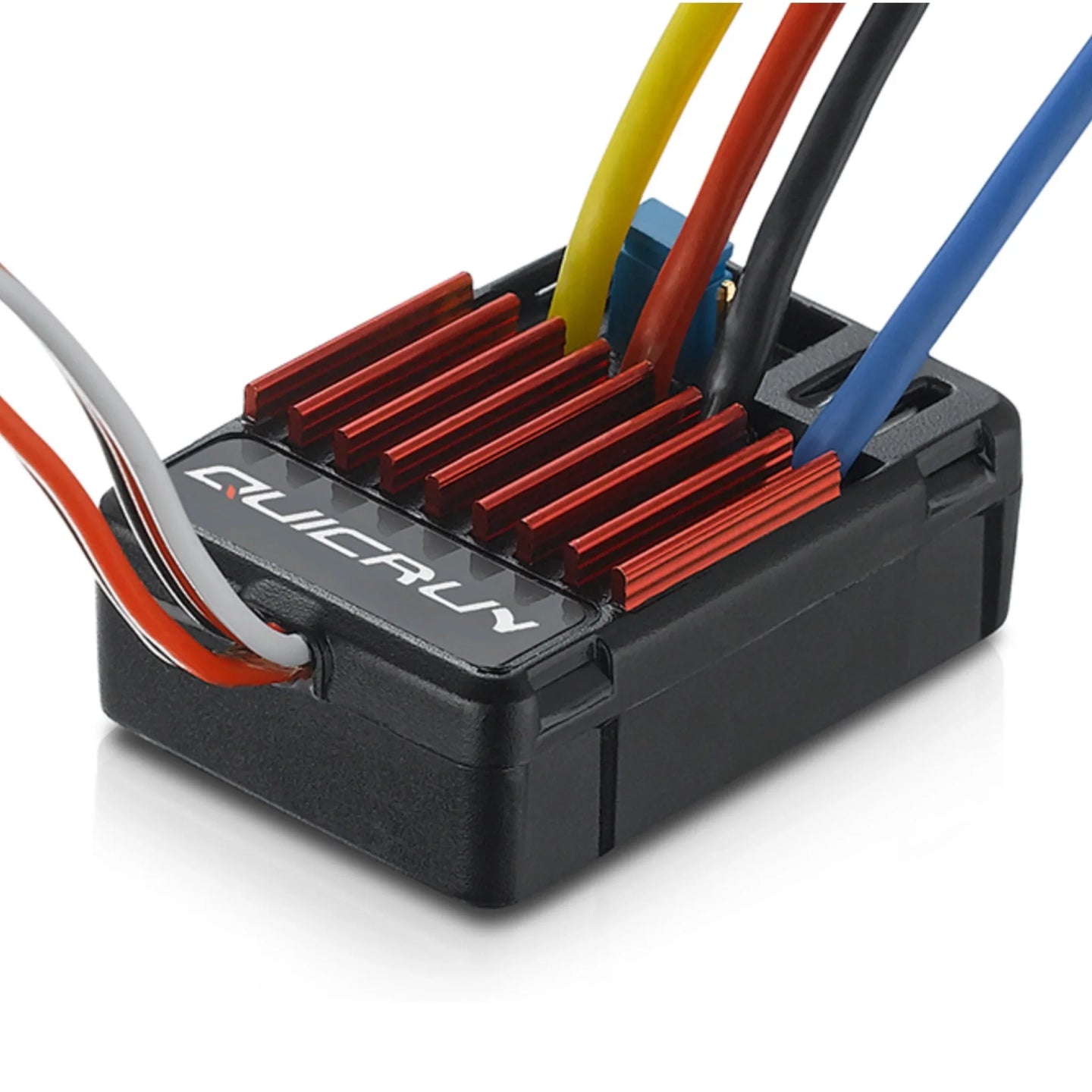

Hobbywing QUICRUN 1625 Brushed ESC (2-3s), HWI-30120000

Suitable for 1:16 & 1:18 SPORT

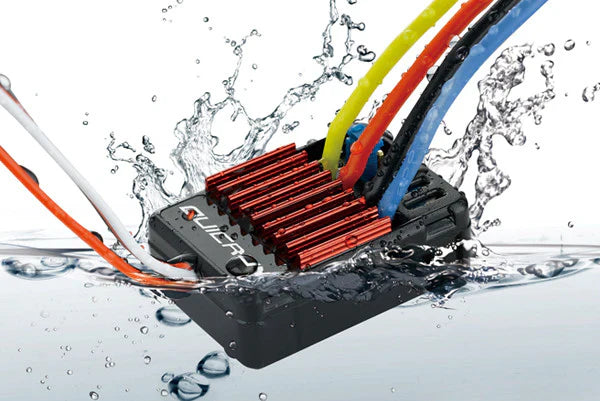

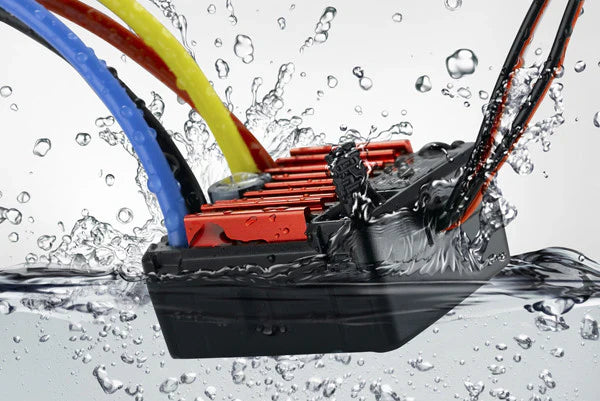

Waterproof and dustproof for all weather races.

Waterproof and dustproof, suitable for races in all weather conditions.Small size with built-in capacitor module.Fwd/Rev/Br running mode fits various vehicles (Fwd =Forward, Br=Brake, Rev=Reverse).Great current endurance capability.

Great built-in BEC output capacity.
Automatic throttle range calibration, easy to use.
ESC parameters are easy to set with jumpers.
Multiple protections:
Over Voltage Protection
Low voltage cut-off protection for battery
Over-heating protection
Throttle signal loss protection.
Risk Free Manufacturers limited warranty

Model / SKU	QUICRUN-WP-1625 BRUSHED / 30105025001
Fwd Cont. Current /Peak Current/ Resistance	25A/100A/0.003Ω
Rev Cont. Current /Peak Current/ Resistance	25A/100A/0.003Ω
Motor Type Supported	BrushedMotor
Car Applicable	1:16 &1:18 On-road/Off-road/Buggy/Monster
Suitable Battery Brushed Motor Limit	For 2S LiPo or 6 cell NiMH: 280、370 or 380 Size Motor RPM<30000 @7.2V For 3S LiPo or 9 cell NiMH: 280、370 or 380 Size Motor RPM<20000 @7.2V
Input Connectors	Small-sized TAMIYA Connector
Output Connectors	4.0 Bullet Connectors (Female)
BEC Output	1A/5V (Linear Mode)
PWM Frequency	1KHz
Size/ Weight	34(L)24(W)14(H) / 23.5g
Running Modes	Forward/Reverse/Brake

Hobbywing

Hobbywing QUICRUN WP 1625 Brushed ESC (2-3s), HWI-30120000

SKU HWI-30120000

Regular price: $29.⁹⁹
Sale price: $19.⁹⁹

Hobbywing QUICRUN 1625 Brushed ESC (2-3s), HWI-30120000

Suitable for 1:16 & 1:18 SPORT

Waterproof and dustproof for all weather races.

Great built-in BEC output capacity.
Automatic throttle range calibration, easy to use.
ESC parameters are easy to set with jumpers.
Multiple protections:
Over Voltage Protection
Low voltage cut-off protection for battery
Over-heating protection
Throttle signal loss protection.
Risk Free Manufacturers limited warranty

Model / SKU	QUICRUN-WP-1625 BRUSHED / 30105025001
Fwd Cont. Current /Peak Current/ Resistance	25A/100A/0.003Ω
Rev Cont. Current /Peak Current/ Resistance	25A/100A/0.003Ω
Motor Type Supported	BrushedMotor
Car Applicable	1:16 &1:18 On-road/Off-road/Buggy/Monster
Suitable Battery Brushed Motor Limit	For 2S LiPo or 6 cell NiMH: 280、370 or 380 Size Motor RPM<30000 @7.2V For 3S LiPo or 9 cell NiMH: 280、370 or 380 Size Motor RPM<20000 @7.2V
Input Connectors	Small-sized TAMIYA Connector
Output Connectors	4.0 Bullet Connectors (Female)
BEC Output	1A/5V (Linear Mode)
PWM Frequency	1KHz
Size/ Weight	34(L)24(W)14(H) / 23.5g
Running Modes	Forward/Reverse/Brake

Regular price: $29.⁹⁹
Sale price: $19.⁹⁹

Quantity

Product Description

Hobbywing QUICRUN 1625 Brushed ESC (2-3s), HWI-30120000

Suitable for 1:16 & 1:18 SPORT

Waterproof and dustproof for all weather races.

Great built-in BEC output capacity.
Automatic throttle range calibration, easy to use.
ESC parameters are easy to set with jumpers.
Multiple protections:
Over Voltage Protection
Low voltage cut-off protection for battery
Over-heating protection
Throttle signal loss protection.
Risk Free Manufacturers limited warranty

Model / SKU	QUICRUN-WP-1625 BRUSHED / 30105025001
Fwd Cont. Current /Peak Current/ Resistance	25A/100A/0.003Ω
Rev Cont. Current /Peak Current/ Resistance	25A/100A/0.003Ω
Motor Type Supported	BrushedMotor
Car Applicable	1:16 &1:18 On-road/Off-road/Buggy/Monster
Suitable Battery Brushed Motor Limit	For 2S LiPo or 6 cell NiMH: 280、370 or 380 Size Motor RPM<30000 @7.2V For 3S LiPo or 9 cell NiMH: 280、370 or 380 Size Motor RPM<20000 @7.2V
Input Connectors	Small-sized TAMIYA Connector
Output Connectors	4.0 Bullet Connectors (Female)
BEC Output	1A/5V (Linear Mode)
PWM Frequency	1KHz
Size/ Weight	34(L)24(W)14(H) / 23.5g
Running Modes	Forward/Reverse/Brake
