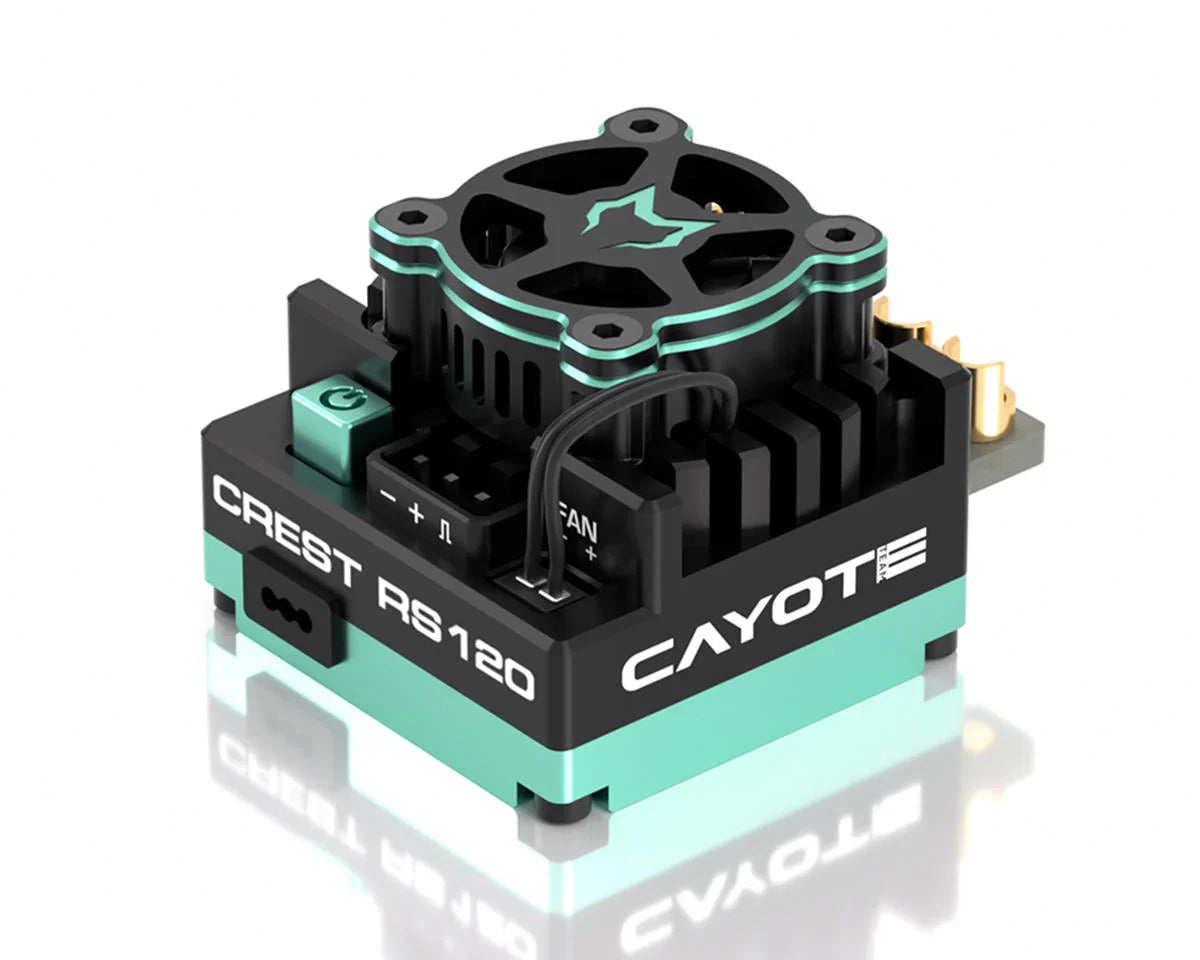

Cayote Crest RS120 1/10 Stock 120A Sensored Brushless Competition ESC, CYEA11002

Cayote Crest RS120 1/10 Stock 120A Sensored Brushless Competition ESC, CYEA11002

The Cayote Crest RS120 1/10 Stock 120A Sensored Brushless Competition ESC is engineered for serious RC racers seeking peak performance in a lightweight, compact package. Weighing just thirty-six grams, this ESC combines smart design with powerful output, making it ideal for competitive 1/10 drifting or professional stock class racing. Tailored presets for various race types simplify setup, while advanced cooling technology ensures efficiency and durability. Whether you're navigating off-road challenges or racing on smooth tarmac, the Crest RS120 delivers consistent, high-performance control.

About the Crest RS120 Brushless ESC

Optimized Performance Across Race Modes
The Crest RS120 features three distinct race presets: Stock Racing Blinky Mode for compliance with no-advance timing rules, a 1/10 Off-Road Mode for truck and bumpy terrain applications, and a 1/10 On-Road Mode for high-speed asphalt action. Each mode is pre-calibrated to deliver tailored power curves, enhancing drivability and control. These profiles remove the guesswork and let racers focus on performance.

Advanced Cooling & Technology
Utilizing innovative ultra-thin, windowed cooling N-MOS technology, the Crest RS120 integrates its chip core directly with the metal housing. This engineering feat reduces thermal resistance by 35%, resulting in improved heat dissipation and maintaining 98% energy efficiency. The compact design eliminates bulky heat sinks, allowing for a slimmer ESC that runs cooler and lasts longer, even under demanding race conditions.

Precision Tuning & Data Feedback
With built-in features like adjustable RPM limiting, offline data recording, and independent drag brake and brake frequency control, the Crest RS120 is all about customization. Users can fine-tune their setups in 0.5K increments and analyze performance data via the Cayote BTune ESC Bluetooth Module (CYECBM01 - sold separately) or Cayote Xlink Multifunction LCD Program Box (CYECPB01 - sold separately) with the Cayote APP. This level of precision ensures better handling and strategic insight for competitive drivers.

Features:
    Stock Racing Blinky Mode
    1/10 Off-Road and On-Road Race Presets
    120A continuous output current
    Ultra-lightweight at 36 grams
    Cooling N-MOS technology with 35% reduced thermal resistance
    98% energy efficiency
    Adjustable RPM limit
    Offline data recording for performance analysis
    Independent drag brake and brake frequency control
    High-performance CNC alloy fan system

Includes:
    (1) Crest RS120 1/10 Stock 120A Sensored Brushless Competition ESC
    Instruction Manual

Specifications:
Suggested Application     1/10 Touring Car, Buggy, Drift, Stock Class Racing
Motor Type     Brushless - Sensored/Sensorless
Input Voltage     2S LiPo (7.4V)
Continuous Current     120A
Peak Current     600A
Dimensions (LxWxH)     1.39x1.20x0.96in (35.3x30.5x24.5mm)
Weight     1.27oz (36g)
Motor Limits:
540/3650     >10.5T
BEC Voltage     6.0/7.4V
BEC Continuous Current     5A
BEC Peak Current     8A
Motor Connector     Solder
Battery Connector     Solder
Motor Wire     -
Battery Wire     -
Throttle Wire     -
Programmable     Yes, with Cayote Xlink Program Box*

*Tech Note: The Cayote Xlink Multifunction LCD Program Box (CYECPB01 - sold separately) is required to read the data. Optionally, you can also use the Cayote BTune 1/10 ESC Bluetooth Module (CYECBM01 - sold separately) to connect to the Cayote Team App and set the parameters and update the firmware.
