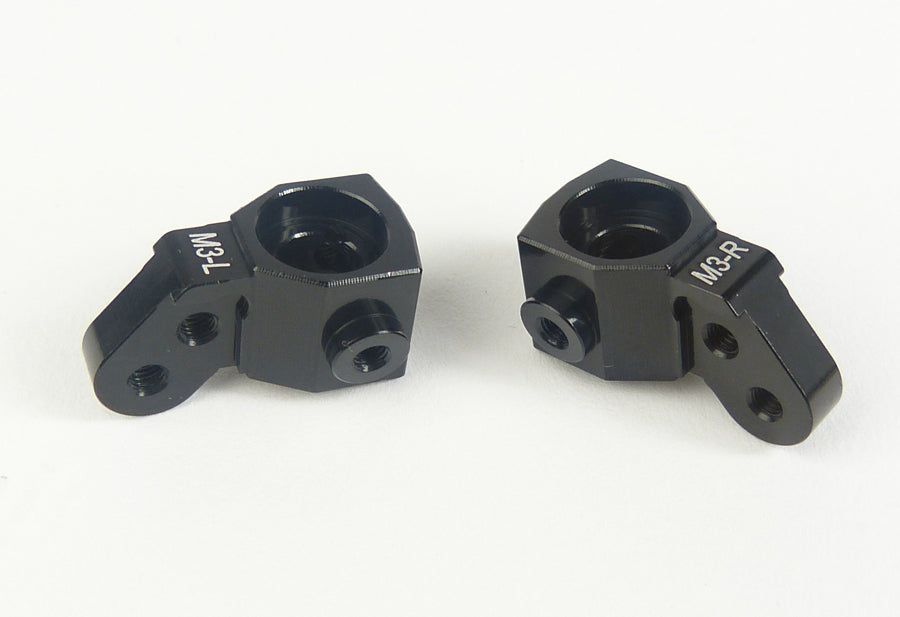

Custom Works M3 ALUMINUM INCLINED HEX SPINDLES – TRAILING (1pr), CW-7245

Required hardware for installation:
4pcs: 1237 5x10x3mm Unflanged Bearings -OR- 4pcs: 8566 5x10x3mm Unflanged Hybrid Ceramic Bearings

For the below parts, be sure to check your instruction manual.  The latest vehicle releases may already include the below items.

4pcs: 7299 M3 Steering Bushings

4pcs: 5358 M3x8 BH Screws (For mounting the carbon steering extender to the spindle)

2pcs: 5360 M3x10 BH Screw + 2pcs- 5212 Flat Washer (For mounting the bottom of the spindle to the caster block)

2pcs: 5360 M3x10 BH Screw + 2pcs- 5212 Flat Washer (For mounting the top of the spindle to the caster block)
-OR-
2pcs: 8333 Tall M3 Ball Stud (When using the kingpin ball stud to mount the camber link)

*NOTE*
If using the 7260 Clamping Hex Axle, you will need to use 2pcs of 7261 Crush Spacers per axle when installing on any inclined spindle.
